Applicable for thermoplastic pipes (PVC-C/PVC-U、PE100、PE-RT).

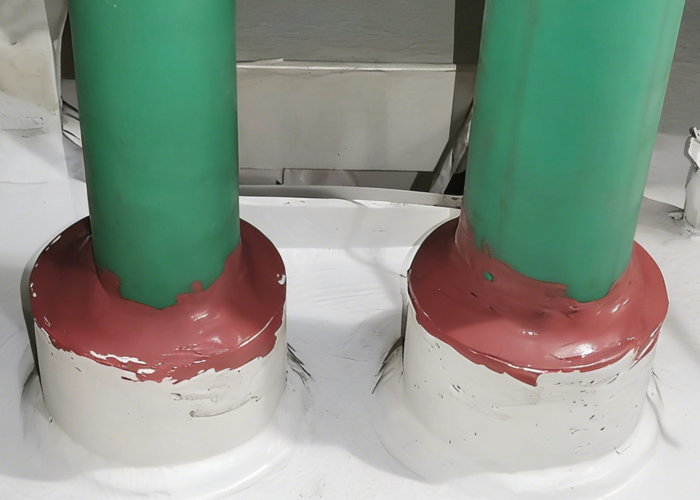

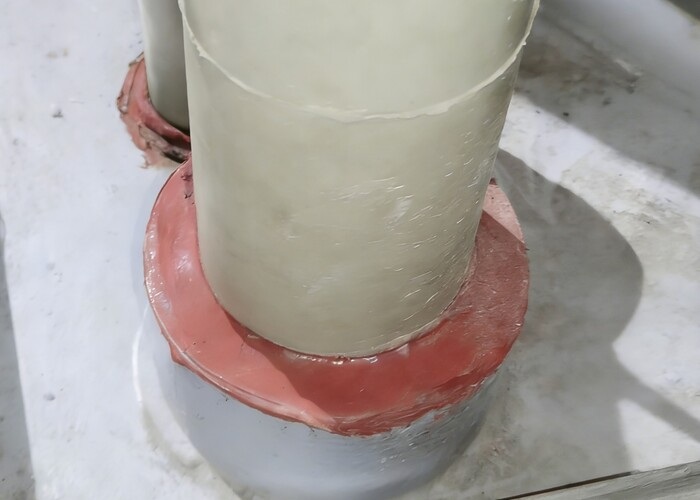

Composition

• Antifire Firestop Sealant: Seal the two ends of steel sleeve, with a minimum thickness of 15mm.

• HK-S Type Intumescent Firestop Belt: Wrap around thermoplastic pipe, with a minimum length of 60mm.

• HK-B Type Marine Fireproof Blanket: Fill at the two ends of the Firestop Belt, with a minimum thickness of 45mm.

Technical Data

• Fire Rating: A0

• Water Tightness: 0.25MPa

• Air Tightness: 0.10MPa

• Approved OD of Thermoplastic Pipes: Φ20-Φ160mm

Approved by

CCS, ABS, DNV, BV, LR, NK, RS, and MED
